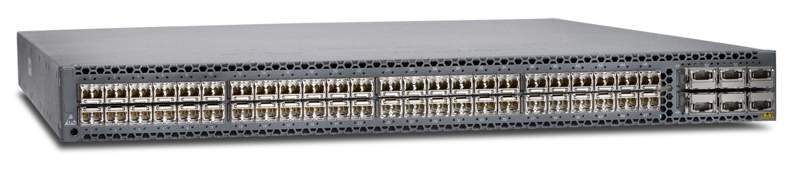

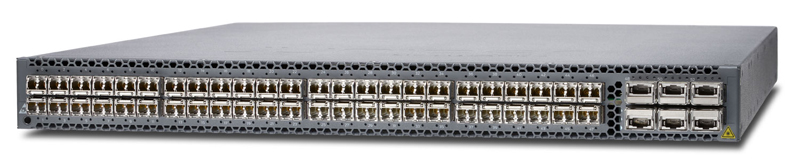

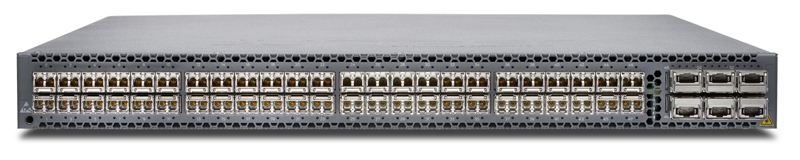

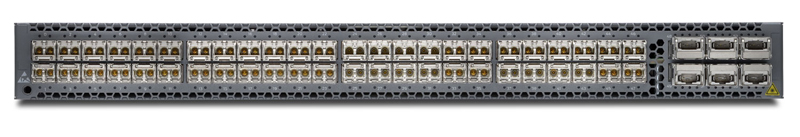

Juniper Networks QFX5100-48S
Very Low-latency, High-Performance, 10/40/100GbE Data Center Switches


Juniper Networks QFX5100-48S

Juniper Networks Products
QFX Series Ethernet Switch with AC Power Supplies
UK: FREE DeliveryQFX5100, 48 SFP+/SFP ports, 6 QSFP ports, redundant fans, redundant power supplies, PSU to built in port air flow.
#QFX5100-48S-AFI
List Price: £24,555.00
Our Price: Request a Quote
UK: FREE DeliveryQFX5100, 48 SFP+/SFP ports, 6 QSFP ports, redundant fans, redundant power supplies, Built in Port to PSU air flow.
#QFX5100-48S-AFO
List Price: £24,555.00
Our Price: Request a Quote

Click here to jump to more pricing!

Please Note: All prices displayed are Ex-VAT. 20% VAT is added during the checkout process.

Overview:

The Juniper Networks QFX5100 line of access and aggregation switches delivers low latency, flexible deployment options, and rich Layer 2 and Layer 3 features, making it the industry's most nimble family of switches.

Featuring Topology-Independent In-Service Software Upgrades (TISSU*) and support for L2 gateway capabilities for bridging between virtualized and baremetal servers, the QFX5100 is designed for the most demanding, high-performance data center deployments. Highly flexible, the QFX5100 can be deployed in mixed 1GbE, 10GbE, and 40GbE environments within Juniper Virtual Chassis, Virtual Chassis Fabric, Junos Fusion and QFabric architectures, as well as within industry-standard architectures such as spine and leaf and Layer 3 fabrics.

Product Description

The highly flexible, high-performance Juniper Networks QFX5100 line of Ethernet switches provides the foundation for today's and tomorrow's dynamic data center. As a critical enabler for IT transformation, the data center network supports cloud and software-defined networking (SDN) adoption, as well as rapid deployment and delivery of applications. Mission-critical applications, network virtualization, and integrated or scale-out storage are driving the need for more adaptable networks. With its diverse set of deployment options, including fabric, Layer 3, and spine and leaf, the QFX5100 is the universal building block for data center switching architectures, enabling users to easily adapt as requirements change over time.

The QFX5100 line includes 10GbE (fiber and copper) and 40GbE fixed-configuration options with rich Layer 2, Layer 3, and MPLS features. The QFX5100 runs the same reliable, highperformance Juniper Networks Junos operating system that is used by Juniper Networks QFabric family of products, EX Series Ethernet Switches, Juniper Networks routers, and Juniper Networks SRX Series Services Gateways, ensuring a consistent implementation and operation of control plane features across the entire Juniper infrastructure.

Featuring a built-in Insight Technology capability, the QFX5100 provides valuable performance and troubleshooting data via microburst monitoring and hotspot statistics. The QFX5100 can also be used as a high-performance QFabric Node in Juniper's highscale QFabric System or as a Satellite device in a Junos Fusion fabric architecture, deployed in Juniper's new Virtual Chassis Fabric switching architecture, and installed in Juniper's existing Virtual Chassis switching architecture.

Architecture and Key Components:

The QFX5100 includes the following capabilities. Please refer to the Specifications section for features that are currently shipping vs. those that will be available in a future software release.

QFX5100 Highlights

  • High-density configurations-72 ports of 10GbE in a 1 U platform; 96 ports of 10GbE in a 2 U platform; and 32 ports of 40GbE in a 1 U platform
  • Up to 2.56 Tbps Layer 2 and Layer 3 performance and as low as 550 ns latency1
  • 1.5 GHz dual-core Intel CPU with 8 GB memory and 32 GB SSD storage
  • High availability with the industry's only Topology-Independent In-Service Software Upgrade (TISSU)
  • Rich automation capabilities with support for Python, Chef, Puppet, and zero-touch provisioning (ZTP)
  • Designed-in Insight Technology software capability for microburst monitoring and reporting, as well as hotspot statistics and visibility
  • Plug-and-play deployable architectures such as Virtual Chassis, Virtual Chassis Fabric, Junos Fusion and QFabric System with simplified management and operation
  • Support for virtualization protocols such as Virtual Extensible LAN (VXLAN), Open vSwitch Database (OVSDB) protocol, and integration with Juniper Networks Contrail and VMware NSX SDN controllers
  • Advanced Junos OS features such as BGP Add-path, MPLS, L3 VPN, and IPv6 6PE
  • Investment protection enabled by compatibility with Juniper Networks EX4300 Ethernet Switch, QFX3500 Switch, and QFX3600 Switch in integrated fabric solutions

QFX5100 Switch Models

The QFX5100 line includes four compact 1 U models and one 2 U model, each providing wire-speed packet performance, very low latency, and a rich set of Junos OS features. In addition to a high throughput Packet Forwarding Engine (PFE), the performance of the control plane running on all QFX5100 models is further enhanced with a powerful 1.5 GHz dual-core Intel CPU with 8 GB of memory and 32 GB SSD storage.

  • QFX5100-48S: Compact 1 U 10GbE data center access switch with 48 small form-factor pluggable and pluggable plus (SFP/ SFP+) transceiver ports and six quad SFP+ (QSFP+) ports with an aggregate throughput of 1.44 Tbps or 1.08 Bpps per switch.
  • QFX5100-48T: Compact 1 U 10GbE data center access switch with 48 tri-speed (10GbE/1GbE/100 Mbps) RJ-45 ports and six QSFP+ ports with an aggregate throughput of 1.44 Tbps or 1.08 Bpps per switch.
  • QFX5100-24Q: Compact 1 U high-density 40GbE data center access and aggregation switch starting at a base density of 24 QSFP+ ports with the option to scale to 32 QSFP+ ports with two four-port expansion modules. All 32 ports support wire-speed performance with an aggregate throughput of 2.56 Tbps or 1.44 Bpps per switch.
  • QFX5100-24Q-AA: Compact 1U high-density data center switch starting with a base density of 24 QSFP+ ports. With the addition of an optional double-wide QFX-PFA-4Q Packet Flow Accelerator (PFA) expansion module, the switch can morph into an intelligent application acceleration system. Alternatively, by installing two four-port 40GbE expansion modules, the QFX5100-24Q-AA can expand to support 32 QSFP+ ports. The switch's CPU subsystem is enhanced with a quad-core Intel CPU with 32 GB of DRAM; additional storage capacity is provided via an onboard 128 GB solid-state drive. The QFX-PFA-4Q features an Altera Stratix V 320 Gbps FPGA with 24 GB SDRAM (DDR3) for packet memory and 72 MB of quad data-rate static RAM (SRAM) (QDR2+) for low-latency processing.
  • QFX5100-96S: Compact 2 U high-density 10GbE aggregation switch with 96 SFP+/SFP and eight QSFP+ ports with an aggregate throughput of 2.56 Tbps or 1.44 Bpps per switch.

For added flexibility, the 40GbE ports on all QFX5100 switches can be used as 4x10GbE ports using QSFP+ to SFP+ direct attach copper (DAC) or QSFP+ to SFP+ fiber splitter cables and optics. With splitter cables, the QFX5100-48S supports up to 72 10GbE ports, while the QFX5100-24Q and QFX5100-96S support up to 104 10GbE ports.

Junos Space Network Director

The QFX5100 switches can be managed through Junos Space Network Director, a next-generation network management solution that allows users to visualize, analyze, and control the entire enterprise network-data center and campus, physical and virtual, wired and wireless-through a single pane of glass. Network Director incorporates sophisticated analytics for realtime intelligence, trended monitoring, and automation to increase agility as well as faster rollout and activation of services.

For cloud deployments, Network Director provides a set of REST APIs that enable on-demand and dynamic network services by simplifying the consumption of services for multitenant environments. With third-party cloud orchestration tool integration, the Network Director API enables automation and provisioning of Layer 2, Layer 3, and security services in the data center without the need for manual operator intervention.

Virtual Chassis Technology

The QFX5100 supports Juniper Networks' unique Virtual Chassis technology, which enables up to 10 interconnected switches to be managed and operated as a single, logical device with a single IP address. Virtual Chassis technology enables enterprises to separate physical topology from logical groupings of endpoints and, as a result, provides efficient resource utilization. All QFX5100 switches can participate in the same Virtual Chassis configuration, along with any combination of EX4300, QFX3500, and QFX3600 Ethernet switches, delivering highly flexible and scalable configuration options for data center deployments.

Virtual Chassis Fabric Switching Architecture

Existing Virtual Chassis technology is further scaled and enhanced to support a spine-and-leaf topology that is ideal for highperformance and low-latency data center deployments. In its first instance, this topology, called Virtual Chassis Fabric, enables up to 20 QFX5100 switches to be deployed in a spine-and-leaf configuration, with two to four QFX5100s in the spine and up to 18 QFX5100s as leaf nodes. This architecture provides any-rack-toany-rack deterministic throughput and less than 3 microseconds of latency, while significantly simplifying network operations through a single point of management. EX4300, QFX3500, and QFX3600 switches can also act as leaf nodes in a Virtual Chassis Fabric deployment, providing support for data centers with mixed 1GbE, 10GbE, and 40GbE servers as well as environments transitioning from 1GbE to 10GbE or 40GbE servers while protecting existing EX4300, QFX3500, and QFX3600 investments.

The QFX5100 also supports a Layer 2 VxLAN Gateway feature in Virtual Chassis Fabric mode, creating a single Hardware VTEP for an entire Virtual Chassis Fabric pod (a single management domain of up to 20 devices) that would exist on all nodes. Virtual Chassis Fabric enables a plug-and-play architecture; hence no VTEP configuration changes are required when adding or removing nodes from the Virtual Chassis Fabric pod. For MAC address learning, Virtual Chassis Fabric supports both EVPN as well as OVSDB, and also integrates with VMware NSX.

Junos Fusion

Junos Fusion, an IEEE 802.1Br standards-based Ethernet fabric, is ideal for mid-to-large data center customers who want simplicity at scale.

The open, easy-to-deploy Junos Fusion provides a single point of management and plug-and-play operation for networks with a choice of 1GbE, 10GbE and 40GbE for server access. In a Junos Fusion deployment, QFX5100 switches are deployed as Satellite devices that are managed by the QFX10000 switches deployed as Aggregation devices. (see Figure 1).

Figure 1: Junos Fusion deployments using QFX1000 switches as Aggregation devices and EX4300 and QFX5100 switches as Satellite devices.
Figure 1: Junos Fusion deployments using QFX1000 switches as Aggregation devices and EX4300 and QFX5100 switches as Satellite devices.

QFabric System

The QFX5100-48S and QFX5100-48T can also act as a QFabric Node device in a QFX3000-M and QFX3000-G QFabric System. The QFX5100-48S and QFX5100-48T are fully interoperable with existing QFX3500 and QFX3600 QFabric Nodes, providing backward compatibility and investment protection. With a mixture of QFX3500, QFX3600, and QFX5100 Nodes, a QFabric System can scale on a node by node basis without being limited by the lowest common denominator.

Data Center Deployments

Today's data centers are built with high-performance, small form-factor, multicore blade and rack servers. The greater compute capacity and server densities enabled by these devices is increasing traffic levels, creating the need for high-speed, lowlatency, storage- and I/O-converged networking solutions that can maximize performance for physical servers, virtual servers, and storage in the data center.

The QFX5100 line offers a portfolio of switches that deliver the low-latency, lossless, high-density 10GbE and 40GbE interfaces with the Fibre Channel over Ethernet (FCoE) transit switch functionality demanded by today's data center. All QFX5100 models are designed to consume the lowest power possible while optimizing space, thereby reducing data center operating costs. Flexible airflow direction options enable the QFX5100 to support back-to-front and front-to-back cooling, ensuring consistency with server designs for hot- and cold-aisle deployments.

Data Center Server Access

The QFX5100 line of switches is ideal for top-of-rack deployments of various densities and speeds. The compact 1 U QFX5100-48S offers 48 ports of native 10GbE for server connectivity and up to six 40GbE ports for uplink connectivity, providing very low oversubscription of 2:1 from access to aggregation. Each 40GbE port can be further broken out into four 10GbE ports, providing additional 10GbE for server connectivity.

The QFX5100-48T offers 48 RJ-45-based 10GbE ports and up to six 40GbE ports for providing uplinks to aggregation switches. Each RJ-45 port can operate in three different speeds, providing 10GbE, 1GbE or 100 Mbps server connectivity using the same shielded twisted pair copper cables. Distances up to 100m can be supported using cables that conform to IEEE 802.3-2012 specifications, enabling the QFX5100-48T to be deployed as a top-of-rack, middle-of-row or end-of-row switch.

The 2 U QFX5100-96S is a high-density native 10GbE data center access switch that is ideal for deployments with a high degree of application redundancy. The highly efficient QFX5100-96S offers 96 ports of native 10GbE for server connectivity and eight 40GbE ports for uplink connectivity, providing very low oversubscription of 3:1 from access to aggregation.

The QFX5100-24Q offers 24 QSFP+ ports in the base unit with an option to scale up to 32 QSFP+ ports with two four-port expansion modules. Each QSFP+ port can be used for native 40GbE server port connectivity or channelized into four 10GbE ports for 10GbE server connectivity, offering maximum flexibility and investment protection for data center growth.

Each of the QFX5100 switches can operate in both cut-through and store-and-forward modes, delivering sustained wirespeed switching with sub-microsecond latency and low jitter for any packet size (including jumbo frames) in both modes. All QFX Series switches support extensive Layer 2 features, enabling the device to support high-density 10GbE/FCoE Layer 2 access deployments. With features such as multi-chassis link aggregation group (MC-LAG), the QFX5100 supports active/active server dual homing and can utilize full bisectional bandwidth from server to switch. When the QFX5100 is deployed in the access layer, MC-LAG on QFX10000 switches in the aggregation layer provides maximum resiliency and full Layer 2 multi-pathing in the network (see Figure 2).

Figure 2: QFX5100 at the access layer
Figure 2: QFX5100 at the access layer

The Junos operating system features the most advanced and robust routing capabilities in the industry. All QFX5100 switches include support for RIP and OSPF for both IPv4 and IPv6 in the base software. Advanced routing capabilities such as IS-IS and BGP are also supported. With additional capabilities like 64-way equal-cost multipath (ECMP) and BGP add path, the QFX5100 is an ideal building block for deploying the most robust Layer 3 underlay for software-defined networks (SDN) (see Figure 3).

Figure 3: Larger scale data center with Layer 3 to the access
Figure 3: Larger scale data center with Layer 3 to the access

In addition, the QFX5100 also supports Virtual Chassis Fabric and QFabric System deployments. These fabric technologies support both Layer 2 multi-pathing and Layer 3 ECMP paths within the same network fabric while dramatically reducing the number of user configured protocols, thus eliminating the need to run protocols such as Virtual Router Redundancy Protocol (VRRP) for Layer 3 gateway load balancing and complex multicast protocols to set up replication trees. Virtual Chassis Fabric and QFabric technology dramatically reduce the complexity and cost of managing the data center network by making multiple switches appear as a single, logical device. Virtual Chassis Fabric allows up to 20 individual switches to be managed via a single CLI, while a QFabric System enables up to 128 Nodes to operate as a single device (see Figures 4 and 5).

Figure 4: Virtual Chassis Fabric data center deployment with a mix of 1GbE and 10GbE
Figure 4: Virtual Chassis Fabric data center deployment with a mix of 1GbE and 10GbE

1 40GbE-to-40GbE port on QFX5100-24Q only

Features and Benefits:

  • Topology-Independent In-Service Software Upgrade (TISSU*): With its Intel core processor, the QFX5100 allows Junos OS to run within a virtual machine (VM) on Linux. Junos OS runs in two separate VMs in active and standby pairs; during software upgrade cycles, the switches seamlessly move to the newer software version while maintaining intact data plane traffic. This true TopologyIndependent ISSU, an industry-first software upgrade feature for a fixed-configuration top-of-rack switch, is supported across all Layer 2 and Layer 3 protocols and doesn't need the support of any other switches to perform an image upgrade.

  • Automation: The QFX5100 switches support a number of features for network automation and plug-and-play operations. Features include zero-touch provisioning, operations and event scripts, automatic rollback, and Python scripting. The switch also offers support for integration with VMware NSX Layer 2 Gateway Services, Puppet, and OpenStack.

  • Flexible Forwarding Table: The QFX5100's Flexible Forwarding Table (FFT) allows the hardware table to be carved into configurable partitions of Layer 2 media access control (MAC), Layer 3 host, and Longest Prefix Match (LPM) tables. In a pure L2 environment, the QFX5100 supports 288,000 MAC addresses. In L3 mode, the table can support 128,000 host entries, and in LPM mode, it can support 128,000 prefixes. Junos OS provides configurable options through a commandline interface (CLI) so that each QFX5100 can be optimized for different deployment scenarios.

  • Intelligent Buffer Management: The QFX5100 switches have a total of 12 MB shared buffers. While 25% of the total buffer space is dedicated, the rest is shared among all ports and is user configurable. The intelligent buffer mechanism in the QFX5100 effectively absorbs traffic bursts while providing deterministic performance, significantly increasing performance over static allocation.

  • Insight Technology for Analytics: The QFX5100 provides dynamic buffer utilization monitoring and reporting with an interval of 10 milliseconds to provide microburst and latency insight. The data can be viewed via CLI, system log, or streamed to external servers for more analysis. Supported reporting formats include Java Script Object Notification (JSON), CSV and TSV. These files can be consumed by orchestration systems, SDN controllers, or network management applications (such as Juniper Networks Junos Space Network Director) to make better network design decisions and identify network hotspots.

  • MPLS: QFX5100 switches support a broad set of MPLS features, including L3 VPN, IPv6 provider edge router (6PE), RSVP traffic engineering, and LDP to allow standards-based network segmentation and virtualization. The QFX5100 can be deployed as a low-latency MPLS label-switching router (LSR) or MPLS PE router in smaller scale environments. The QFX5100 is the industry's only compact, low-latency, highdensity, low-power switch to offer an MPLS feature set.

  • VXLAN: The QFX5100 supports Layer 2 gateway services that enable VXLAN-to-VLAN connectivity at any tier of the data center network, from server access to the edge. For MAC address learning, the QFX5100 supports both EVPN as well as OVSDB, and also integrates with VMware NSX.

  • FCoE: As a Fibre Channel over Ethernet (FCoE) transit switch, the QFX5100 provides an IEEE data center bridging (DCB) converged network between FCoE-enabled servers and an FCoE-enabled Fibre Channel storage area network (SAN). The QFX5100 offers a full-featured DCB implementation that provides strong monitoring capabilities on the top-of-rack switch for SAN and LAN administration teams to maintain clear separation of management. In addition, FCoE Initiation Protocol (FIP) snooping provides perimeter protection, ensuring that the presence of an Ethernet layer does not impact existing SAN security policies. FCoE link aggregation group (LAG) active/active support is available to achieve resilient (dual-rail) FCoE connectivity.

The FCoE transit switch functionality, including priority-based flow control (PFC), Enhanced Transmission Selection (ETS), and Data Center Bridging Capability Exchange (DCBX), are included as part of the default software.

Specifications:


Model: QFX5100-24Q QFX5100-24Q-AA QFX5100-48T QFX5100-48S QFX5100-96S
Dimensions
(H x W x D)
1.72 x17.36 x 20.48 in (4.37 x 44.09 x 52.02 cm) 1.72 x17.36 x 20.48 in (4.37 x 44.09 x 52.02 cm) 1.72 x 17.36 x 21.47 in (4.37 x 44.09 x 54.54 cm) 1.72 x17.36 x 20.48 in (4.37 x 44.09 x 52.02 cm) 3.46 x 17.36 x 22.44 in (8.8 x 44.09 x 57 cm)
Weight 21.6 lb (9.8 kg) 21.6 lb (9.8 kg) 24.8 lb (11.2 kg) 21.8 lb (9.9 kg) 32.5 lb (14.74 kg)
Switching Capacity 2.56 Tbps/1.44 Bpps 2.56 Tbps/1.44. Bpps 1.44 Tbps/1.08 Bpps 1.44 Tbps/1.08 Bpps 2.56 Tbps/1.44 Bpps
Power Consumption 161 W 175 W 335 W 150 W 263 W1
Interface Options
  • 1GbE SFP: N/A
  • 10GbE SFP+: 96/104 (with breakout cable)
  • 40GbE QSFP+: 24/32 (with 2 x QFX-EM-4Q)
  • 1GbE SFP: N/A
  • 10GbE SFP+: 96/104 (with breakout cable)
  • 40GbE QSFP+: 24/32 (with 2 x QFX-EM-4Q)
  • 100 Mbps RJ-45: 48
  • 1GbE RJ-45: 48
  • 10GbE RJ-45: 48
  • 10GbE SFP+: 24 (with breakout cable)
  • 40GbE QSFP+: 6
  • 1GbE SFP: 48 (24 copper 1GbE)
  • 10GbE SFP+: 48/72 (with breakout cable)
  • 40GbE QSFP+: 6
  • 1GbE SFP: 96 (48 Copper 1GbE)
  • 10GbE SFP+: 104 (with breakout cable)
  • 40GbE QSFP+: 8
Interface Options
  • Each QSFP+ port can be configured as a 4 x 10GbE interface
  • Each QSFP+ port can be configured as a 40 Gbps port
  • USB port
  • Console port
  • 2 management ports: 1 RJ-45 and 1 SFP
  • Supported transceiver and direct attach cable
  • SFP+ 10GbE optical modules
  • SFP+ DAC cables: 1/3/5 m twinax copper and 1/3/5/7/10 m active twinax copper
  • SFP GbE optical and copper module
  • QSFP+ to SFP+ 10GbE direct attach break-out copper (1/3 m twinax copper cable)
Rack Installation Kit Versatile four post mounting options for 19-in server rack or datacom rack
Airflow
  • Front-to-back and back-to-front cooling
  • Redundant variable-speed fans to reduce power draw
Power Supply and Fan Modules
  • Dual redundant (1+1) and hot-pluggable power supplies
  • 110-240 V single phase AC power
  • -36 to -72 V DC power
  • Redundant (N+1) and hot-pluggable fan modules for frontto-back and back-to-front airflow
Performance Scale (Unidimensional)
MAC addresses per system 288,0002
VLAN IDs 4,096
Number of link aggregation groups (LAGs) 128
Number of ports per LAG 32
Number of FCoE VLANs/FC Virtual Fabrics 4,095
Firewall filters 4000
IPv4 unicast routes 128,000 prefixes; 208,000 host routes; 643 ECMP paths
IPv4 multicast routes 104,000
IPv6 multicast routes 52,000
IPv6 unicast routes 64,000 prefixes
ARP entries 48,000
Jumbo frame 9,216 bytes
Spanning Tree Protocol (STP)
  • Multiple Spanning Tree Protocol (MSTP) instances: 64
  • VLAN Spanning Tree Protocol (VSTP) instances: 253
Traffic mirroring
  • Mirroring destination ports per switch: 4
  • Maximum number of mirroring sessions: 4
  • Mirroring destination VLANs per switch: 4
Environmental Ranges
Operating temperature 32° to 104° F (0° to 40° C)
Storage temperature -40° to 158° F (-40° to 70° C)
Operating altitude Up to 2,000 (610 m)
Relative humidity operating 5% to 90% (noncondensing)
Relative humidity non-operating 0% to 95% (noncondensing)

1 Measured with 10GbE passive DAC and QSFP passive DAC
2 MAC address table uses a hash-based scheme to program entries; therefore, some entries may not be programmed due to hash index collision.
3 USR optics and QFSP+ SR4 optics

Additional Feature Specifications:



Layer 2 Features

  • STP-IEEE 802.1D (802.1D-2004)
  • Rapid Spanning Tree Protocol (RSTP) (IEEE 802.1w); MSTP (IEEE 802.1s)
  • Bridge protocol data unit (BPDU) protect
  • Loop protect
  • Root protect
  • RSTP and VSTP running concurrently
  • VLAN-IEEE 802.1Q VLAN trunking
  • Routed VLAN Interface (RVI)
  • Port-based VLAN
  • MAC address filtering
  • Private VLAN (PVLAN)
  • QinQ
  • VLAN Translation
  • Static MAC address assignment for interface
  • Per VLAN MAC learning (limit)
  • MAC learning disable
  • Link Aggregation and Link Aggregation Control Protocol (LACP) (IEEE 802.3ad)
  • IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

Link Aggregation

  • Multi-chassis link aggregation (MC-LAG)
  • Redundant Trunk Group (RTG)
  • LAG load sharing algorithm-bridged or routed (unicast or multicast) traffic:
    • IP: SIP, Dynamic Internet Protocol (DIP), TCP/UDP source port, TCP/UDP destination port
    • Layer 2 and non-IP: MAC SA, MAC DA, Ethertype, VLAN ID, source port
    • FCoE packet: Source ID (SID), Destination ID (DID), Originator exchange ID (OXID), source port

Layer 3 Features (IPv4)

  • Static routing
  • Routing policy
  • Routing protocols (RIP, OSPF, IS-IS, BGP)
  • Virtual Router Redundancy Protocol (VRRP)
  • Bidirectional Forwarding Detection (BFD) protocol
  • Virtual router
  • Dynamic Host Configuration Protocol (DHCP) relay
  • Proxy Address Resolution Protocol (ARP)

Multicast Features

  • Internet Group Management Protocol (IGMP): v1, v2 , V3
  • IGMP snooping: v1, v2, v3
  • IGMP Filter
  • PIM-SM
  • Multicast Source Discovery Protocol (MSDP)

Security and Filters

  • Secure interface login and password
  • RADIUS
  • TACACS+
  • Ingress and egress filters: Allow and deny, port filters, VLAN filters, and routed filters, including management port filters
  • Filter actions: Logging, system logging, reject, mirror to an interface, counters, assign forwarding class, permit, drop, police, mark
  • SSH v1, v2
  • Static ARP support
  • Storm control, port error disable, and autorecovery
  • Control plane denial-of-service (DoS) protection
  • Dynamic ARP Inspection (DAI)
  • Sticky MAC address
  • DHCP snooping

Quality of Service (QoS)

  • L2 and L3 QoS: Classification, rewrite, queuing
  • Rate limiting:
    • Ingress policing: 1 rate 2 color, 2 rate 3 color
    • Egress policing: Policer, policer mark down action
    • Egress shaping: Per queue on each port
  • 12 hardware queues per port (8 unicast and 4 multicast)
  • Strict priority queuing (LLQ), smoothed deficit weighted round-robin (SDWRR), weighted random early detection (WRED), weighted tail drop
  • 802.1p remarking
  • Layer 2 classification criteria: Interface, MAC address, Ethertype, 802.1p, VLAN
  • Congestion avoidance capabilities: WRED
  • Trust IEEE 802.1p (ingress)
  • Remarking of bridged packets

Data Center Bridging (DCB)

  • Priority-based flow control (PFC)-IEEE 802.1Qbb
  • Enhanced Transmission Selection (ETS)-IEEE 802.1Qaz
  • Data Center Bridging Exchange Protocol (DCBX), DCBx FCoE, and iSCSI type, length, and value (TLVs)

Fibre Channel over Ethernet (FCoE)

  • FCoE transit switch (FIP snooping ACL installation)
  • FCoE session path learning
  • FCoE session health monitoring
  • Graceful restart for FIP snooping
  • FC-BB-6 VN2VN snooping

Virtual Chassis

  • 40GbE and 10GbE as Virtual Chassis port
  • Virtual Chassis Routing Engine (RE) election
  • Virtual Chassis pre-provisioning (plug and play)
  • Auto-LAG formation of Virtual Chassis ports
  • Mixed Virtual Chassis support
  • FCoE transit across Virtual Chassis members
  • QoS on Virtual Chassis ports
  • Local Designated Forwarding
  • Graceful RE switchover (GRES)
  • Nonstop routing (NSR)
  • Nonstop bridging (NSB)
  • Monitor distributed aggregate interface
  • Control plane protection for virtual RE

High Availability

  • Topology-independent in-service software upgrade (TISSU)
  • Bidirectional Forwarding Detection (BFD)
  • Uplink failure detection (UFD)

MPLS

  • Static label-switched paths (LSPs)
  • RSVP-based signaling of LSPs
  • LDP-based signaling of LSPs
  • LDP tunneling (LDP over RSVP)
  • MPLS class of service (CoS)
  • MPLS access control list (ACL)/policers
  • MPLS LSR support
  • IPv6 tunneling (6PE) (via IPv4 MPLS backbone)
  • MPLS Operation, Administration, and Maintenance (OAM)- LSP ping
  • IPv4 L3 VPN (RFC 2547, 4364)

Server Virtualization Management and SDN-Related Protocols

  • Junos Space Virtual Control
  • IEEE 802.1Qbg (VEPA hairpin forwarding)
  • VMware NSX VXLAN L2 Gateway
  • VXLAN OVSDB
  • OpenFlow 1.3 client

Management and Operations

  • Junos Space Network Director
  • Role-based CLI management and access
  • CLI via console, telnet, or SSH
  • Extended ping and traceroute
  • Junos OS configuration rescue and rollback
  • Image rollback
  • SNMP v1/v2/v3
  • Junos XML management protocol
  • sFlow v5
  • High frequency statistics collection
  • Beacon LED for port and system
  • Automation and orchestration
  • Zero-touch provisioning (ZTP)
  • OpenStack Neutron Plug-in
  • Puppet
  • Chef
  • Python
  • Junos OS event, commit, and OP scripts

Traffic Mirroring

  • Port-based
  • LAG port
  • VLAN-based
  • Filter-based
  • Mirror to local
  • Mirror to remote destinations (L2 over VLAN)

Standards Compliance

IEEE Standards

  • IEEE standard
  • IEEE 802.1D
  • IEEE 802.1w
  • IEEE 802.1
  • IEEE 802.1Q
  • IEEE 802.1p
  • IEEE 802.1ad
  • IEEE 802.3ad
  • IEEE 802.1AB
  • IEEE 802.3x
  • IEEE 802.1Qbb
  • IEEE 802.1Qaz
  • IEEE 802.3an

T11 Standards

  • INCITS T11 FC-BB-5

Supported RFCs

  • RFC 768 UDP
  • RFC 783 Trivial File Transfer Protocol (TFTP)
  • RFC 791 IP
  • RFC 792 ICMP
  • RFC 793 TCP
  • RFC 826 ARP
  • RFC 854 Telnet client and server
  • RFC 894 IP over Ethernet
  • RFC 903 RARP
  • RFC 906 TFTP Bootstrap
  • RFC 951 1542 BootP
  • RFC 1058 Routing Information Protocol
  • RFC 1112 IGMP v1
  • RFC 1122 Host requirements
  • RFC 1142 OSI IS-IS Intra-domain Routing Protocol
  • RFC 1256 IPv4 ICMP Router Discovery (IRDP)
  • RFC 1492 TACACS+
  • RFC 1519 Classless Interdomain Routing (CIDR)
  • RFC 1587 OSPF not-so-stubby area (NSSA) Option
  • RFC 1591 Domain Name System (DNS)
  • RFC 1745 BGP4/IDRP for IP-OSPF Interaction
  • RFC 1772 Application of the Border Gateway Protocol in the Internet
  • RFC 1812 Requirements for IP Version 4 routers
  • RFC 1997 BGP Communities Attribute
  • RFC 2030 SNTP, Simple Network Time Protocol
  • RFC 2068 HTTP server
  • RFC 2131 BOOTP/DHCP relay agent and Dynamic Host
  • RFC 2138 RADIUS Authentication
  • RFC 2139 RADIUS Accounting
  • RFC 2154 OSPF w/Digital Signatures (Password, MD-5)
  • RFC 2236 IGMP v2
  • RFC 2267 Network ingress filtering
  • RFC 2328 OSPF v2 (edge mode)
  • RFC 2338 VRRP
  • RFC 2362 PIM-SM (edge mode)
  • RFC 2370 OSPF Opaque link-state advertisement (LSA) Option
  • RFC 2385 Protection of BGP Sessions via the TCP Message Digest 5 (MD5) Signature Option
  • RFC 2439 BGP Route Flap Damping
  • RFC 2453 RIP v2
  • RFC 2474 Definition of the Differentiated Services Field in the IPv4 and IPv6 Headers
  • RFC 2597 Assured Forwarding PHB (per-hop behavior) Group
  • RFC 2598 An Expedited Forwarding PHB
  • RFC 2697 A Single Rate Three Color Marker
  • RFC 2698 A Two Rate Three Color Marker
  • RFC 2796 BGP Route Reflection-An Alternative to Full Mesh IBGP
  • RFC 2918 Route Refresh Capability for BGP-4
  • RFC 3065 Autonomous System Confederations for BGP
  • RFC 3376 IGMP v3 (source-specific multicast include mode only)
  • RFC 3392 Capabilities Advertisement with BGP-4
  • RFC 3446, Anycast RP
  • RFC 3569 SSM
  • RFC 3618 MSDP
  • RFC 3623 Graceful OSPF Restart
  • RFC 4271 Border Gateway Protocol 4 (BGP-4)
  • RFC 4360 BGP Extended Communities Attribute
  • RFC 4456 BGP Route Reflection: An Alternative to Full Mesh Internal BGP (IBGP)
  • RFC 4486 Subcodes for BGP Cease Notification Message
  • RFC 4724 Graceful Restart Mechanism for BGP
  • RFC 4812 OSPF Restart Signaling
  • RFC 4893 BGP Support for Four-octet AS Number Space
  • RFC 5176 Dynamic Authorization Extensions to RADIUS
  • RFC 5396 Textual Representation of Autonomous System (AS) Numbers
  • RFC 5668 4-Octet AS Specific BGP Extended Community
  • RFC 5880 Bidirectional Forwarding Detection (BFD)
  • Configuration Protocol (DHCP) server

Supported MIBs

  • RFC 1155 SMI
  • RFC 1157 SNMPv1
  • RFC 1212, RFC 1213, RFC 1215 MIB-II, Ethernet-Like MIB and TRAPs
  • RFC 1850 OSPFv2 MIB
  • RFC 1901 Introduction to Community-based SNMPv2
  • RFC 2011 SNMPv2 for Internet protocol using SMIv2
  • RFC 2012 SNMPv2 for transmission control protocol using SMIv2
  • RFC 2013 SNMPv2 for user datagram protocol using SMIv2
  • RFC 2233, The Interfaces Group MIB Using SMIv2
  • RFC 2287 System Application Packages MIB
  • RFC 2570 Introduction to Version 3 of the Internet-standard Network Management Framework
  • RFC 2571 An Architecture for describing SNMP Management Frameworks (read-only access)
  • RFC 2572 Message Processing and Dispatching for the SNMP (read-only access)
  • RFC 2576 Coexistence between SNMP Version 1, Version 2, and Version 3
  • RFC 2578 SNMP Structure of Management Information MIB
  • RFC 2579 SNMP Textual Conventions for SMIv2
  • RFC 2580 Conformance Statements for SMIv2
  • RFC 2665 Ethernet-like interface MIB
  • RFC 2787 VRRP MIB
  • RFC 2790 Host Resources MIB
  • RFC 2819 RMON MIB
  • RFC 2863 Interface Group MIB
  • RFC 2932 IPv4 Multicast MIB
  • RFC 3410 Introduction and Applicability Statements for Internet Standard Management Framework
  • RFC 3411 An architecture for describing SNMP Management Frameworks
  • RFC 3412 Message Processing and Dispatching for the SNMP
  • RFC 3413 Simple Network Management Protocol (SNMP)- (all MIBs are supported except the Proxy MIB)
  • RFC 3414 User-based Security Model (USM) for version 3 of SNMPv3
  • RFC 3415 View-based Access Control Model (VACM) for the SNMP
  • RFC 3416 Version 2 of the Protocol Operations for the SNMP
  • RFC 3417 Transport Mappings for the SNMP
  • RFC 3418 Management Information Base (MIB) for the SNMP
  • RFC 3584 Coexistence between Version 1, Version 2, and Version 3 of the Internet-standard Network Management Framework
  • RFC 3826 The Advanced Encryption Standard (AES) Cipher Algorithm in the SNMP User-based Security Model
  • RFC 4188 Definitions of Managed Objects for Bridges
  • RFC 4318 Definitions of Managed Objects for Bridges with Rapid Spanning Tree Protocol
  • RFC 4363b Q-Bridge VLAN MIB

Approvals

Safety

  • CAN/CSA-C22.2 No. 60950-1 (2007) Information Technology Equipment-Safety
  • UL 60950-1 (2nd Ed.) Information Technology Equipment- Safety
  • EN 60950-1 (2005) Information Technology Equipment- Safety
  • IEC 60950-1 (2005) Information Technology Equipment- Safety (All country deviations): CB Scheme report.
  • EN 60825-1 +A1+A2 (1994) Safety of Laser Products-Part 1: Equipment Classification
  • GR-63-Core (2006) Network Equipment, Building Systems (NEBS) Physical Protection
  • GR-1089-Core (2006) EMC and Electrical Safety for Network Telecommunications Equipment
  • SR-3580 (1995) NEBS Criteria Levels (Level 3)

EMC

  • FCC 47CFR, Part 15 Class A (2009) USA Radiated Emissions
  • EN 55022 Class A (2006)+ A1 2007 European Radiated Emissions
  • VCCI Class A (2007) Japanese Radiated Emissions
  • BSMI CNS 13438 and NCC C6357 Taiwan Radiated Emissions
  • AS/NZS CISPR22:2009

Environmental Compliance

  • Restriction of Hazardous Substances (ROHS) 6/6
  • Silver PSU Efficiency
  • Recycled material
  • Waste Electronics and Electrical Equipment (WEEE)
  • Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH)
  • China Restriction of Hazardous Substances (ROHS)

Telco

  • Common Language Equipment Identifier (CLEI) code

Views:


Top Front View
Top Front View

Front View
Front View

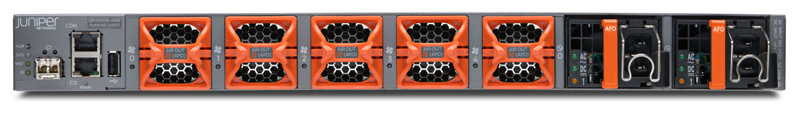

Rear View (Back-to-front airflow)
Rear View (Back-to-front airflow)
Rear View (Front-to-back airflow)
Rear View (Front-to-back airflow)
Left Angle View
Left Angle View
Right Angle View
Right Angle View

Documentation:

Download the Juniper Networks QFX5100 Ethernet Switch Data Sheet (PDF).

Pricing Notes:

QFX Series Ethernet Switch with AC Power Supplies
UK: FREE DeliveryQFX5100, 48 SFP+/SFP ports, 6 QSFP ports, redundant fans, redundant power supplies, PSU to built in port air flow.
#QFX5100-48S-AFI
List Price: £24,555.00
Our Price: Request a Quote
UK: FREE DeliveryQFX5100, 48 SFP+/SFP ports, 6 QSFP ports, redundant fans, redundant power supplies, Built in Port to PSU air flow.
#QFX5100-48S-AFO
List Price: £24,555.00
Our Price: Request a Quote
UK: FREE DeliveryQFX5100, 48 SFP+/SFP ports, 6 QSFP+ ports, redundant fans, 2 AC power supplies, back to front airflow
#QFX5100-48S-3AFI
List Price: £24,555.00
Our Price: Request a Quote
UK: FREE DeliveryQFX5100, 48 SFP+/SFP ports, 6 QSFP+ ports, redundant fans, 2 AC power supplies, front to back airflow
#QFX5100-48S-3AFO
List Price: £24,555.00
Our Price: Request a Quote
QFX Series Ethernet Switch with DC Power Supplies
UK: FREE DeliveryQFX5100, 48 SFP+/SFP ports, 6 QSFP ports, redundant fans, redundant power supplies, PSU to built in port air flow.
#QFX5100-48S-DC-AFI
List Price: £25,782.75
Our Price: Request a Quote
UK: FREE DeliveryQFX5100, 48 SFP+/SFP ports, 6 QSFP ports, redundant fans, redundant power supplies, Built in Port to PSU air flow.
#QFX5100-48S-DC-AFO
List Price: £25,782.75
Our Price: Request a Quote
UK: FREE DeliveryQFX5100, 48 SFP+/SFP ports, 6 QSFP+ ports, redundant fans, 2 DC power supplies, back to front airflow
#QFX5100-48S-D-3AFI
List Price: £25,782.75
Our Price: Request a Quote
UK: FREE DeliveryQFX5100, 48 SFP+/SFP ports, 6 QSFP+ ports, redundant fans, 2 DC power supplies, front to back airflow
#QFX5100-48S-D-3AFO
List Price: £25,782.75
Our Price: Request a Quote
Juniper Care
Juniper Care Core Support for QFX5100-48S
#SVC-COR-QFX5100S4
Our Price: Request a Quote
Juniper Care Core Plus Support for QFX5100-48S
#SVC-CP-QFX5100S4
Our Price: Request a Quote
Juniper Care Next Day Support for QFX5100-48S
#SVC-ND-QFX5100S4
Our Price: Request a Quote
Juniper Care Next Day Onsite Support for QFX5100-48S
#SVC-NDCE-QFX5100S4
Our Price: Request a Quote
Juniper Care Same Day Support for QFX5100-48S
#SVC-SD-QFX5100S4
Our Price: Request a Quote
Juniper Care Same Day Onsite Support for QFX5100-48S
#SVC-SDCE-QFX5100S4
Our Price: Request a Quote
Advanced Feature Licenses
QFX Series edge Advanced Feature License for IS-IS, BGP and IPv6 Routing
#QFX-JSL-EDGE-ADV1
List Price: £4,092.50
Our Price: Request a Quote
VCF License for QFX5100
#QFX-VCF-LIC
List Price: £1,637.00
Our Price: Request a Quote
Spare
AC 650 W PSU, front-to-back airflow for QFX5100-48S, QFX5100-48T, QFX5100-24Q, QFX5100-24Q-AA
#JPSU-650W-AC-AFO
Our Price: £1,052.80
Inc. VAT: £1,263.36
AC 650 W PSU, back-to-front airflow for QFX5100-48S, QFX5100-48T, QFX5100-24Q, QFX5100-24Q-AA
#JPSU-650W-AC-AFI
List Price: £1,227.75
Our Price: Request a Quote
DC 650 W PSU, front-to-back airflow for QFX5100-48S, QFX5100-48T, QFX5100-24Q
#JPSU-650W-DC-AFO
List Price: £3,274.00
Our Price: Request a Quote
DC 650 W PSU, back-to-front airflow for QFX5100-48S, QFX5100-48T, QFX5100-24Q
#JPSU-650W-DC-AFI
List Price: £3,274.00
Our Price: Request a Quote
Blank for QFX5100 Expansion Slot
#QFX5100-EM-BLNK
List Price: £163.70
Our Price: Request a Quote
QFX5100, Fan Module for PSU side to Built in Port Side Air Flow
#QFX5100-FAN-AFI
List Price: £409.25
Our Price: Request a Quote
QFX5100, Fan Module PSU Side to Built in Port Side Air Flow
#QFX5100-FAN-AFO
List Price: £409.25
Our Price: Request a Quote
Optics and Transceivers
SFP 10/100/1000BASE-T copper; RJ-45 connector; 100 m reach on UTP
#EX-SFP-1GE-T
Our Price: £280.75
Inc. VAT: £336.90
SFP 1000BASE-SX; LC connector; 850 nm; 550 m reach on multimode fiber
#EX-SFP-1GE-SX
Our Price: £350.93
Inc. VAT: £421.12
SFP 1000BASE-LX; LC connector; 1310 nm; 10 km reach on single-mode fiber
#EX-SFP-1GE-LX
Our Price: £701.86
Inc. VAT: £842.23
SFP+ 10 Gigabit Ethernet Ultra Short Reach Optics, 850 nm for 10m on OM1, 20m on OM2, 100m on OM3 multimode fiber
#EX-SFP-10GE-USR
Our Price: £526.40
Inc. VAT: £631.68
SFP+ 10GBASE-SR; LC connector; 850 nm; 300m reach on 50 microns multimode fiber; 33m on 62.5 microns multimode fiber
#EX-SFP-10GE-SR
Our Price: £1,052.80
Inc. VAT: £1,263.36
SFP+ 10GBASE-LR; LC connector; 1310 nm; 10 km reach on single-mode fiber
#EX-SFP-10GE-LR
Our Price: £2,807.46
Inc. VAT: £3,368.95
SFP+ 10GBASE-ER 10 Gigabit Ethernet Optics, 1550 nm for 40 km transmission on singlemode fiber
#EX-SFP-10GE-ER
Our Price: £7,018.64
Inc. VAT: £8,422.37
SFP+ 10GBASE-ZR; LC connector; 1550nm; 80 km reach on single-mode fiber
#EX-SFP-10GE-ZR
Our Price: £9,826.09
Inc. VAT: £11,791.31
SFP+ 10 Gigabit Ethernet Direct Attach Copper (twinax copper cable) 1m
#QFX-SFP-DAC-1M
List Price: £122.78
Our Price: Request a Quote
SFP+ 10 Gigabit Ethernet Direct Attach Copper (twinax copper cable) 3m
#QFX-SFP-DAC-3M
List Price: £171.89
Our Price: Request a Quote
SFP+ 10 Gigabit Ethernet Direct Attach Copper (twinax copper cable) 5m
#QFX-SFP-DAC-5M
List Price: £212.81
Our Price: Request a Quote
SFP+ 10 Gigabit Ethernet Direct Attach Copper (active twinax copper cable) 1m
#QFX-SFP-DAC-1MA
List Price: £163.70
Our Price: Request a Quote
SFP+ 10 Gigabit Ethernet Direct Attach Copper (active twinax copper cable) 3m
#QFX-SFP-DAC-3MA
List Price: £212.81
Our Price: Request a Quote
SFP+ 10 Gigabit Ethernet Direct Attach Copper (active twinax copper cable) 5m
#QFX-SFP-DAC-5MA
List Price: £229.18
Our Price: Request a Quote
SFP+ 10 Gigabit Ethernet Direct Attach Copper (active twinax copper cable) 7m
#QFX-SFP-DAC-7MA
List Price: £245.55
Our Price: Request a Quote
SFP+ 10 Gigabit Ethernet Direct Attach Copper (active twinax copper cable) 10m
#QFX-SFP-DAC-10MA
List Price: £286.48
Our Price: Request a Quote
QSFP+ 40GBase-eSR4 40 Gigabit Optics, 850nm for up to 300m Transmission on MMF, Spares, QFX
#QFX-QSFP-40G-ESR4
List Price: £6,138.75
Our Price: Request a Quote
QSFP+ 40GBase-SR4 40 Gigabit Optics, 850nm for up to 150m transmission on MMF
#QFX-QSFP-40G-SR4
List Price: £3,274.00
Our Price: Request a Quote
QSFP+ 40GBase Direct Attach Copper Cable 1-meter, passive
#QFX-QSFP-DAC-1M
Our Price: £210.56
Inc. VAT: £252.67
QSFP+ 40GBase Direct Attach Copper Cable 3-meter, passive
#QFX-QSFP-DAC-3M
Our Price: £280.75
Inc. VAT: £336.90
QSFP+ to SFP+ 10 Gigabit Ethernet Direct Attach Break out Copper (twinax copper cable) 1m
#QFX-QSFP-DACBO-1M
List Price: £327.40
Our Price: Request a Quote
QSFP+ to SFP+ 10 Gigabit Ethernet Direct Attach Break out Copper (twinax copper cable) 3m
#QFX-QSFP-DACBO-3M
List Price: £491.10
Our Price: Request a Quote
